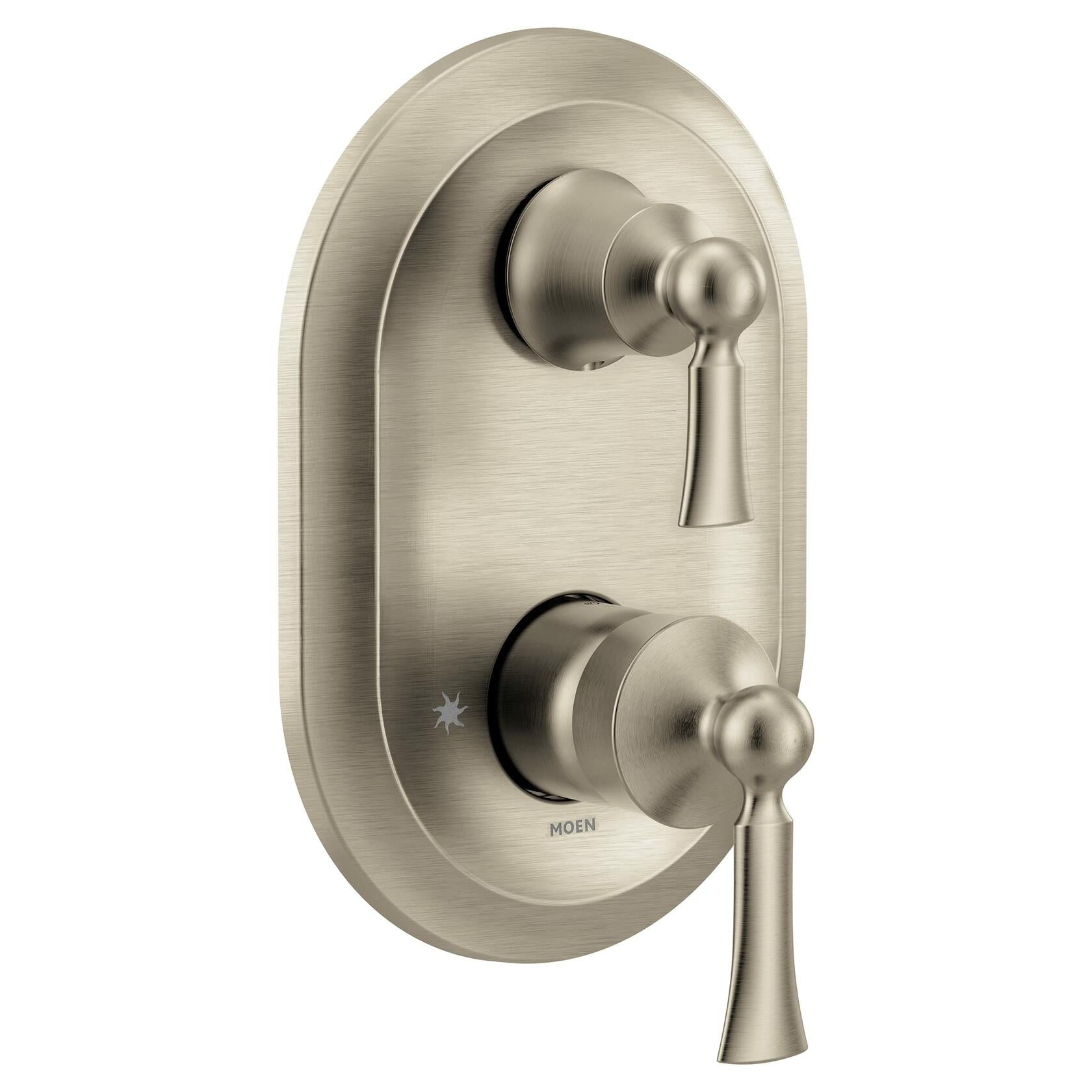

MOEN Wynford UT5500BN M-CORE 3-Series 2-Handle Shower Trim Kit with Integrated Transfer Valve in Brushed Nickel (Valve Not Included) - Like New

About This Product

M-CORE is shower design on your time. This valve system is simpler and faster to install and offers additional functionality with desired style choices to create an ideal shower environment. MOEN has conducted extensive research to create M-CORE and what drives the design is a passion to make the workday more streamlined for plumbers and to give more freedom in showering functionality and design whether in new construction or remodel projects. Homeowners and designers will enjoy M-CORE's improved style and finish options including perfectly matching mixing and transfer trim and attention to detail that reflects a desire for a dream bathroom. Once installed, M-CORE valves, with new 3-Series trim, have pressure balancing capabilities designed to control temperature fluctuations in the event of water pressure changes in the home. They also feature volume control, allowing you to adjust the flow of water.

Highlights

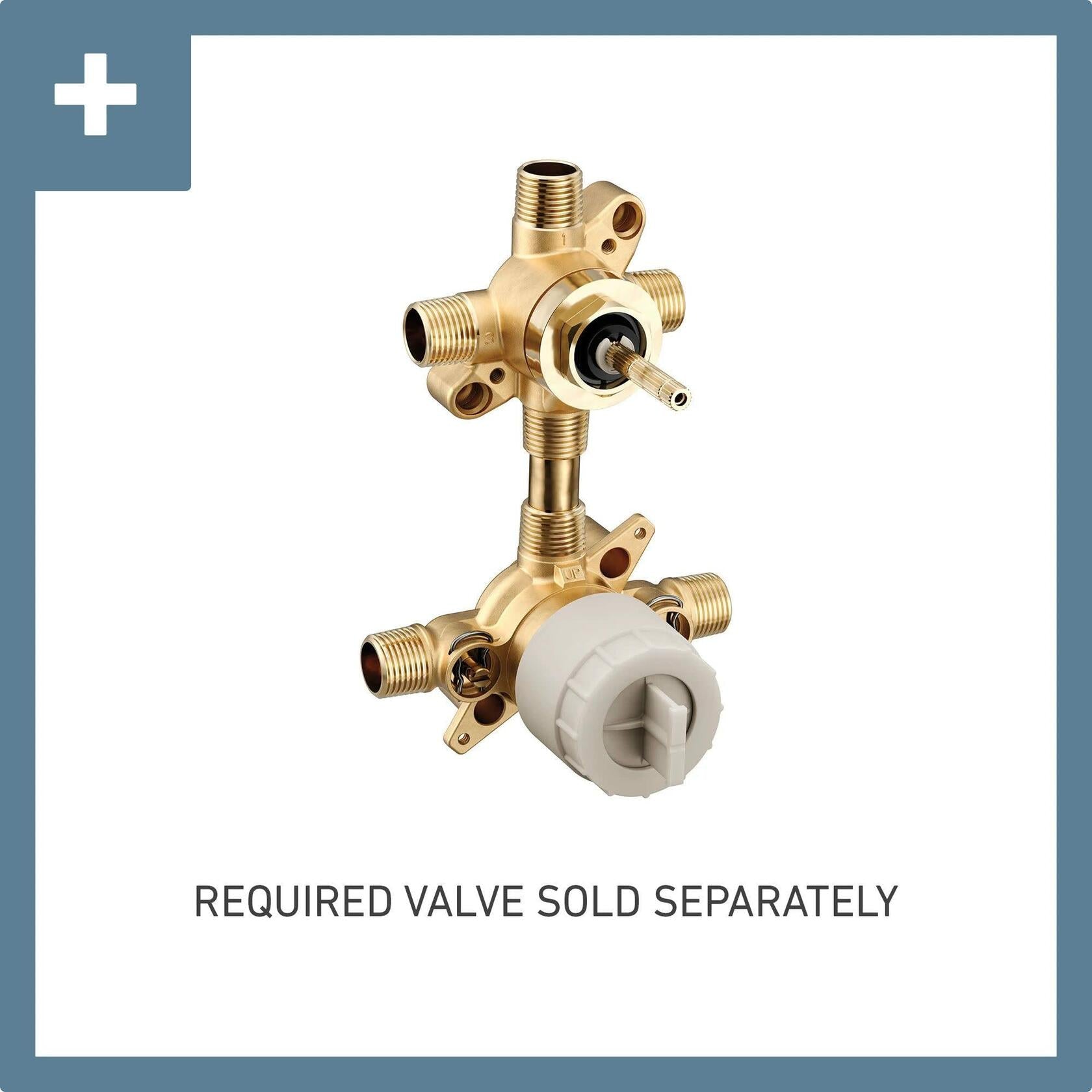

• VALVE REQUIRED: This trim kit requires M-CORE Mixing Valve with Integrated Transfer Valve U232 or U362, with preferred installation option, to complete installation
• Integrated M-CORE transfer valves can control 2 or 3 showering devices, a simple transfer cartridge modification changes the valve's flow from 2 outlets to 3 outlets
• Important: when using 3 showering devices, transfer valve cartridge must be modified, simple cartridge modification changes the valves flow from 2 outlets to 3 outlets, see transfer valve instructions for additional information
• Important: when using 2 showering devices, designated outlet 3 must be capped, caps are not included with the transfer valves
• M-CORE valves with 3-series trim, have pressure-balancing capabilities designed to control temperature fluctuations in the event of water pressure changes in the home
• Features volume control, allowing you to adjust the flow of water for greater functionality
• Improved style options, including the perfectly matched mixing and transfer trim are available
• Offers design flexibility to choose your trim after the valve installation, so you can take your time with your style and finish selections
• M-CORE'S adaptability allows the valves to be roughed in with the option of functionality and style changes that don't require removing or changing the valve(s)
• Features an integrated mounting bracket that secures the valve directly to a brace, streamlining the installation process and saving time
• Offers a precise temperature limit adjustment and the integrated test cap allows installers to easily flush and test the system without having to remove or install the cartridge
• M-CORE mixing and transfer valves are available in several inlet and outlet plumbing options to meet the needs of the installers
• Backed by MOEN's limited lifetime warranty

Features

• • • • • • • • • • WARM AND INVITING: Brushed Nickel finish provides a lightly brushed warm-grey metallic look
                  • VALVE REQUIRED: This trim kit requires M-CORE Mixing Valve with Integrated Transfer Valve U232 or U362, with preferred installation option, to complete installation
                  • FOR USE WITH TWO OR THREE SHOWERING DEVICES: Integrated M-CORE Transfer Valves can control 2 or 3 showering devices, a simple transfer cartridge modification changes the valve’s flow from two outlets to three outlets
                  • IMPORTANT: When using 3 Showering Devices, transfer valve cartridge must be modified. Simple Cartridge Modification changes the valves flow from two outlets to three outlets. See Transfer Valve Instructions for additional information.
                  • IMPORTANT: When using 2 Showering Devices, designated outlet 3 must be CAPPED. Caps sold separately.
                  • PRESSURE-BALANCING CAPABILITY: M-CORE valves, with 3-Series trim, have pressure-balancing capabilities designed to control temperature fluctuations in the event of water pressure changes in the home
