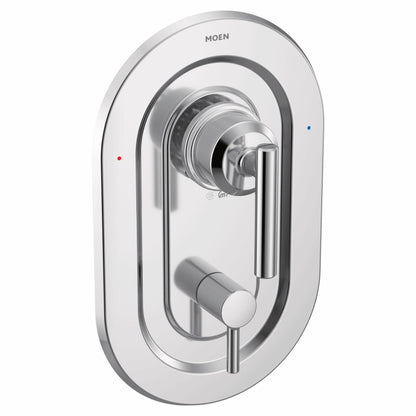

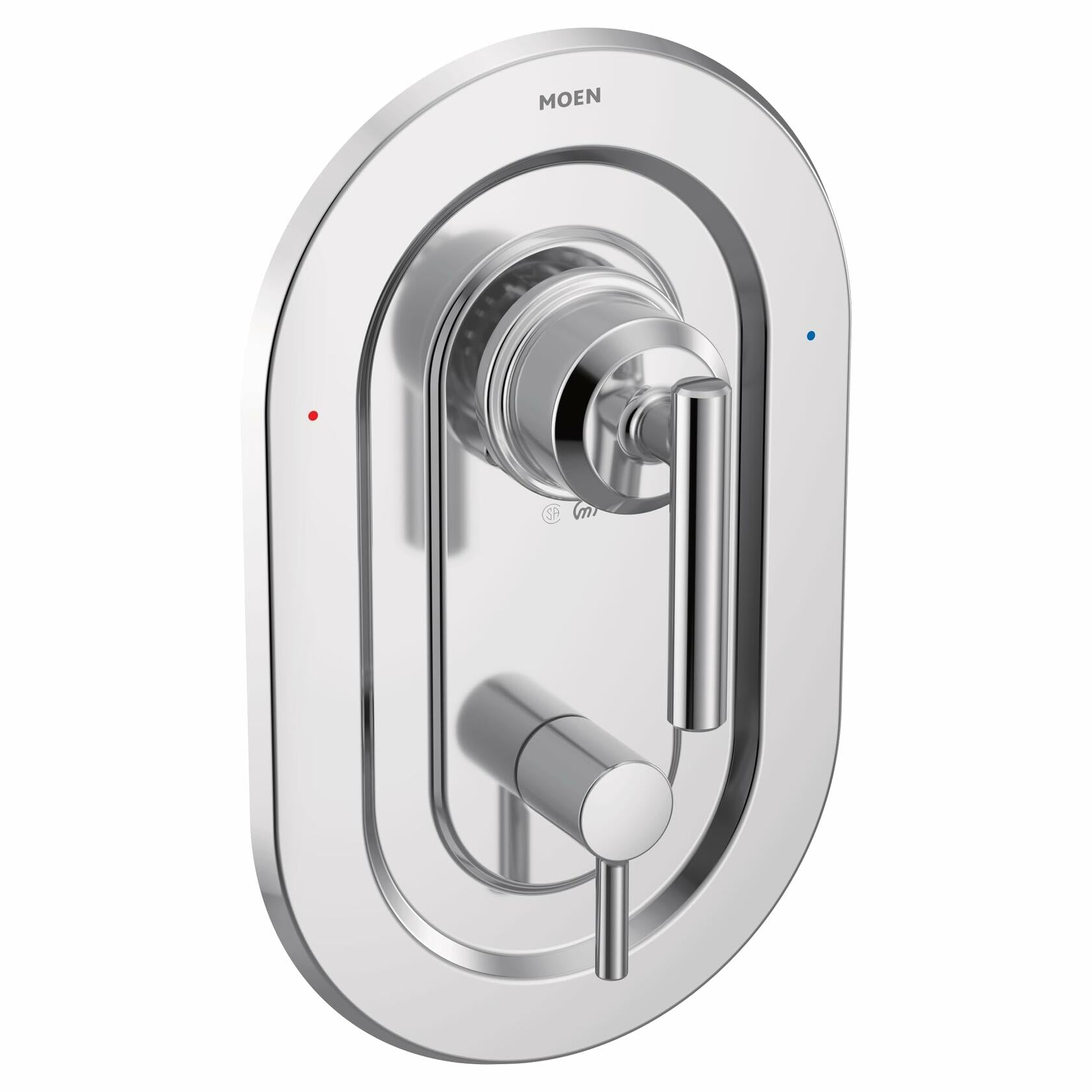

MOEN Gibson T2900 Posi Temp Integrated 3 Function Transfer Valve Trim in Chrome (Valve Required)

The MOEN Gibson T2900 combines a Posi Temp mixing control and an integrated 3 function transfer control in one streamlined Chrome trim. It provides temperature control plus selection between two or three showering devices when installed with a compatible MOEN combination valve.

Features & Details

• Integrated layout combines the mixing and transfer controls in one trim
• Transfer handle has three function positions for directing water between compatible showering devices
• Posi Temp pressure balancing design helps control temperature fluctuations caused by household pressure changes
• Lever handles provide accessible operation
• Adjustable temperature limit stop helps control the maximum hot water setting
• Chrome finish offers a bright, reflective appearance
• Trim kit only; compatible rough in valve is required

Specifications

• Brand: MOEN
• Collection: Gibson
• Model: T2900
• Product type: Posi Temp mixing and 3 function transfer valve trim
• Finish: Chrome

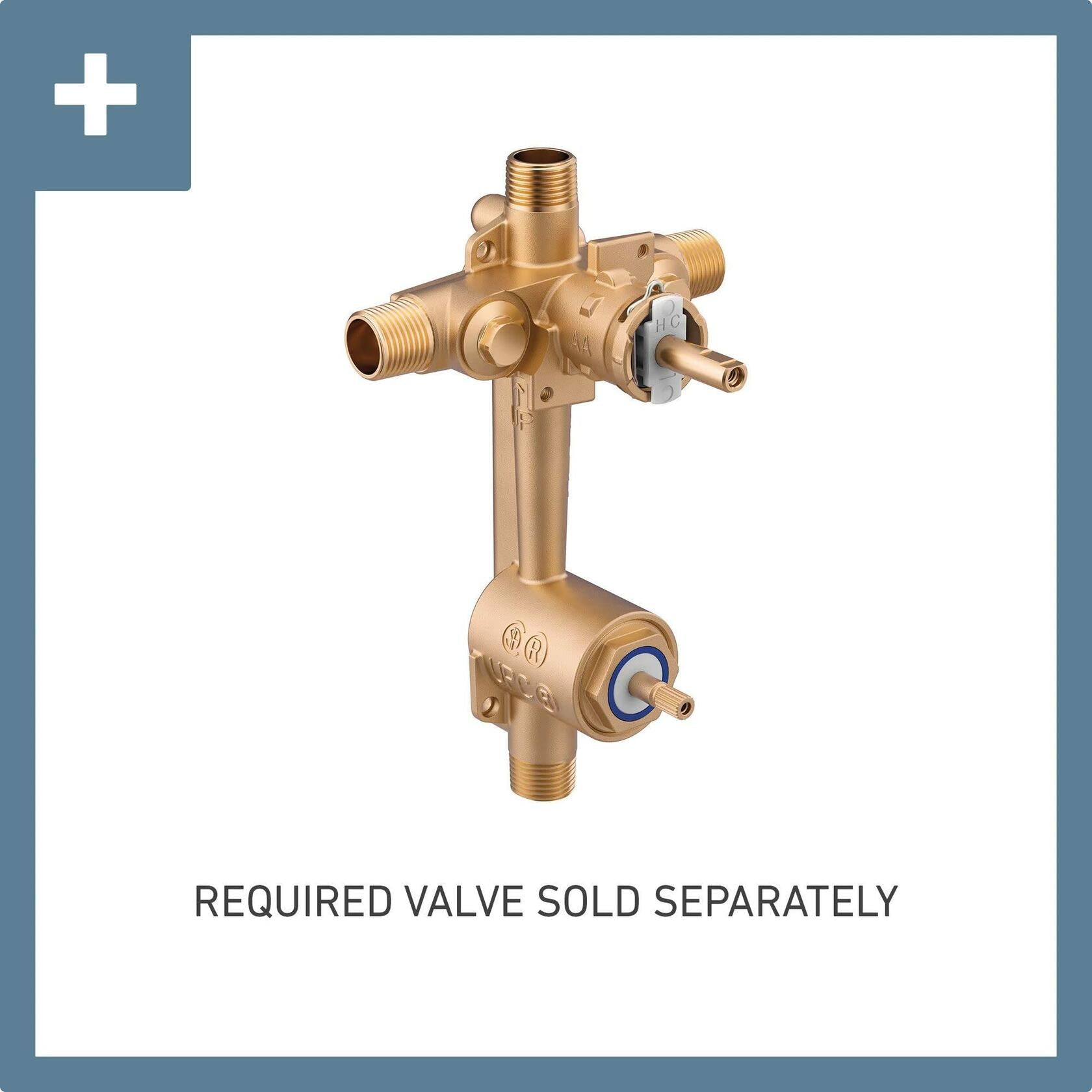

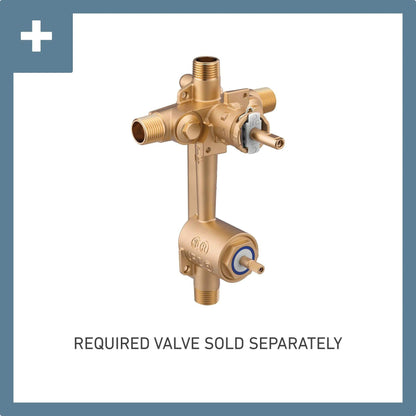

• Required valves: MOEN 2521, 2551, 2571, or 2581 combination valve
• Overall trim height: 11 1/8 in.
• Escutcheon width: 6 7/8 in.
• Mixing handle projection: 2 13/16 in.
• Transfer handle projection: 1 15/16 in.
• Temperature handle travel: 270 degrees
• Transfer handle rotation: 90 degrees with stops
• Pressure balancing accuracy: Maintains selected discharge temperature within approximately 3 degrees
• Construction: Metal
• Installation: Wall mount
• Valve included: No
