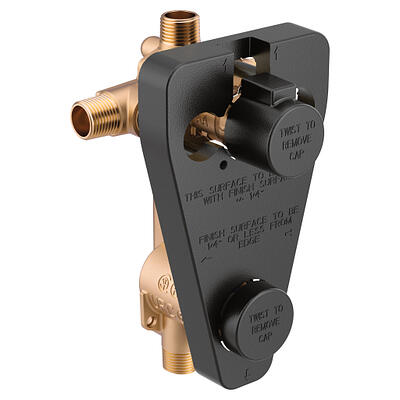

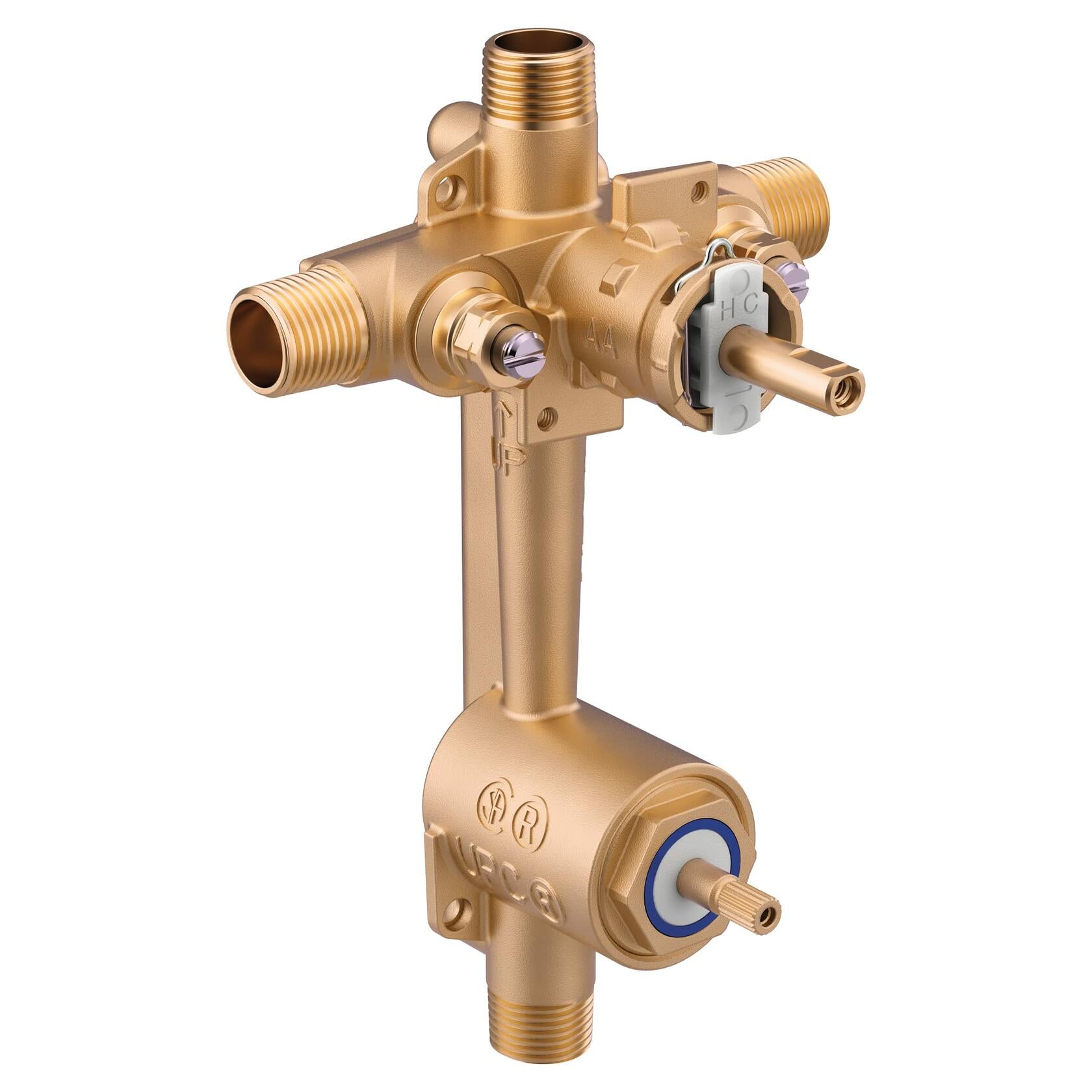

MOEN 2581 M-PACT Posi-Temp 3-Function Diverter Rough-In Valve with Stops, 1/2" CC/IPS

The MOEN 2581 combines a Posi-Temp pressure-balancing valve and integrated three-function transfer valve in one rough-in body. It controls temperature while directing water to either of two showering devices independently or to both simultaneously. The four-port valve uses 1/2-inch CC or IPS connections and includes service stops.

Features & Details

• Integrated three-function diverter: Operates outlet one, outlet two, or both outlets together.
• Two-device control: Supports two compatible showering devices with independent and shared operation.
• Posi-Temp pressure balancing: Helps maintain stable water temperature when household pressure changes.
• CC/IPS compatibility: 1/2-inch connections accommodate compatible copper-sweat or threaded plumbing.
• Service stops included: Allow supply isolation at the valve during maintenance.
• Temperature limit stop: Adjustable stop helps restrict the maximum hot-water setting.
• Standard-wall installation: Designed to fit a standard 2-by-4 framed wall.
• M-PACT system: Works with compatible Posi-Temp-with-diverter trim and supports future trim changes without replacing plumbing.
• Important tub-spout limitation: This model is not designed for installation with a diverter tub spout.

Specifications

• Brand: MOEN
• Model: 2581
• Valve system: M-PACT Posi-Temp with diverter
• Product type: Pressure-balancing diverter rough-in valve
• Functions: 3 — two independent, one shared
• Supported showering devices: 2
• Ports: 4
• Connection size: 1/2 inch
• Connection types: CC and IPS
• Service stops: Included
• Temperature limit stop: Included and adjustable
• Cartridge: MOEN 1222
• Wall compatibility: Standard 2-by-4 wall
• Trim: Sold separately
