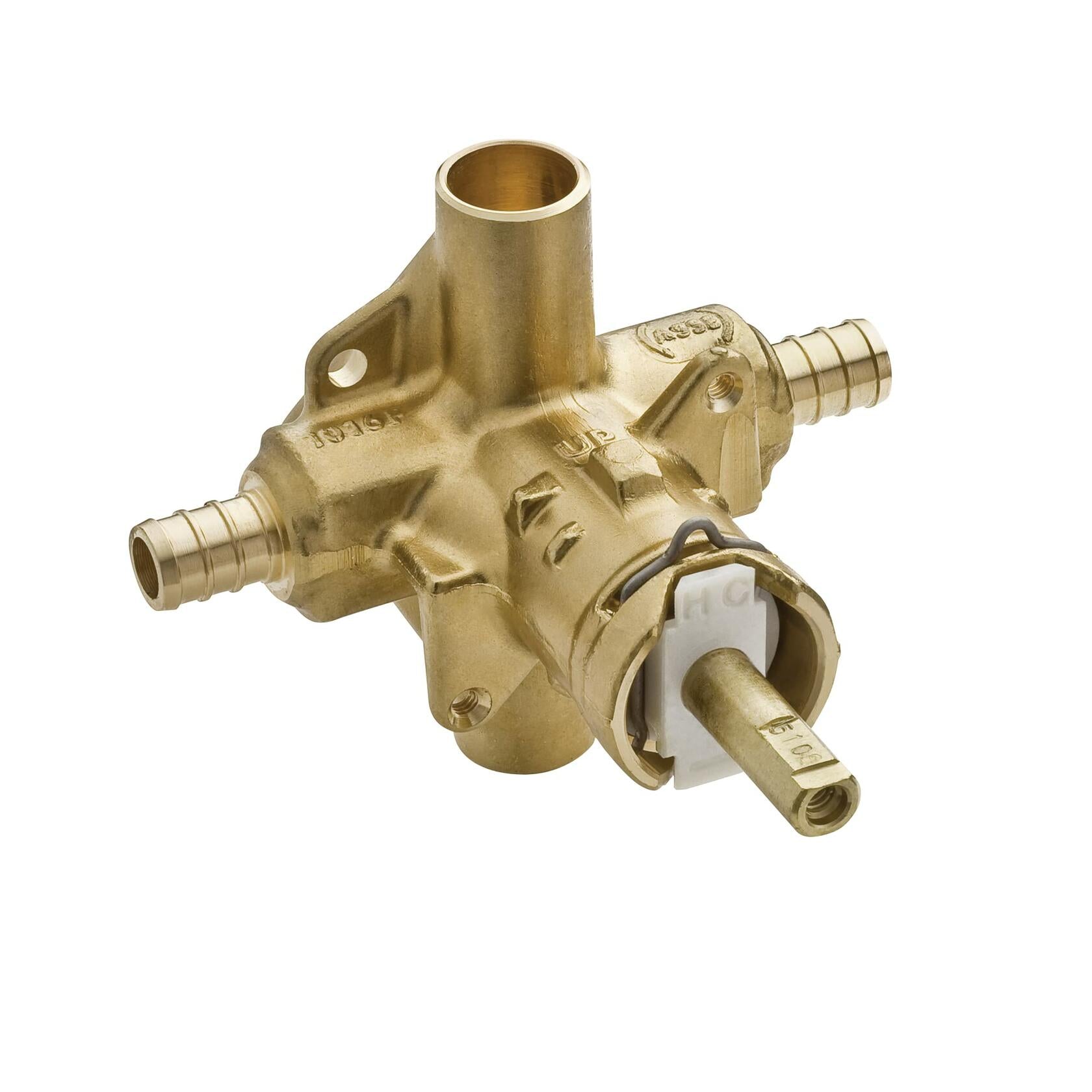

MOEN 2580 M-PACT Posi-Temp 4-Port Rough-In Valve, 1/2" Crimp PEX Inlets/CC Outlets

The MOEN 2580 M-PACT Posi-Temp rough-in valve provides pressure-balanced temperature control for compatible tub-and-shower or shower-only installations. Its four-port brass body uses 1/2-inch crimp-ring PEX inlets with CC copper-sweat outlets and includes an adjustable temperature limit stop and MOEN 1222 cartridge.

Features & Details

• Posi-Temp pressure balancing: Helps maintain a stable shower temperature when household water pressure changes.
• Mixed connection layout: Uses 1/2-inch crimp PEX supply inlets and CC copper-sweat outlets.
• Four-port valve body: Supports hot and cold inlets with tub and shower outlets.
• Flexible installation: Can be configured for tub-and-shower use or shower-only use by capping the unused outlet as required.
• Temperature limit stop: Adjustable stop restricts maximum handle rotation and hot-water temperature range.
• M-PACT system: Accepts compatible Posi-Temp trim and permits later trim changes without replacing the in-wall valve.
• 1222 cartridge: Uses MOEN’s replaceable Posi-Temp pressure-balancing cartridge.

Specifications

• Brand: MOEN
• Model: 2580
• Valve system: M-PACT Posi-Temp
• Product type: Pressure-balancing rough-in valve
• Applications: Tub and shower or shower only
• Ports: 4
• Connection size: 1/2 inch
• Inlet connection: Crimp-ring PEX
• Outlet connection: CC copper sweat
• Temperature limit stop: Included and adjustable
• Cartridge: MOEN 1222
• Valve body material: Brass
• Service stops: Not included
• Trim: Sold separately
