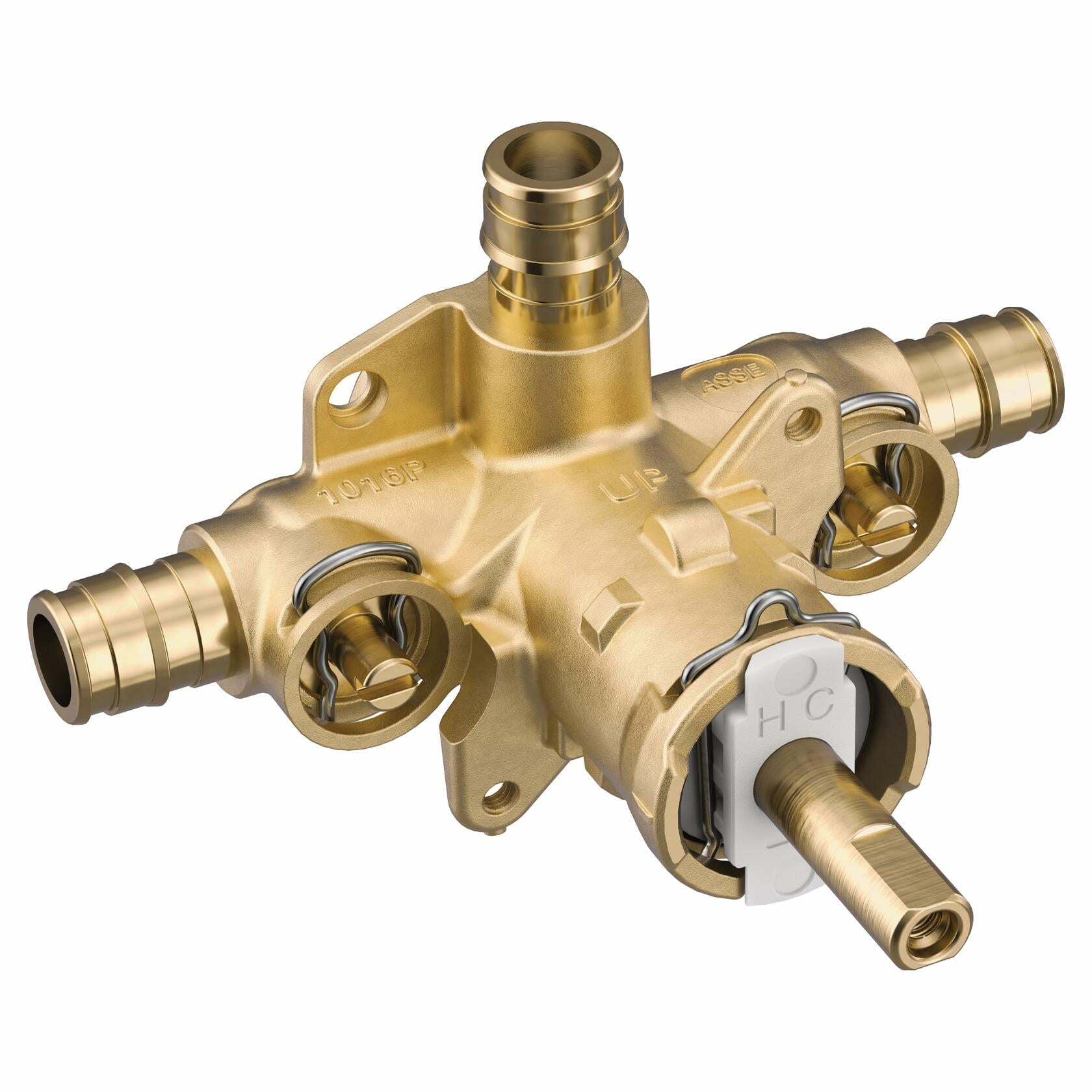

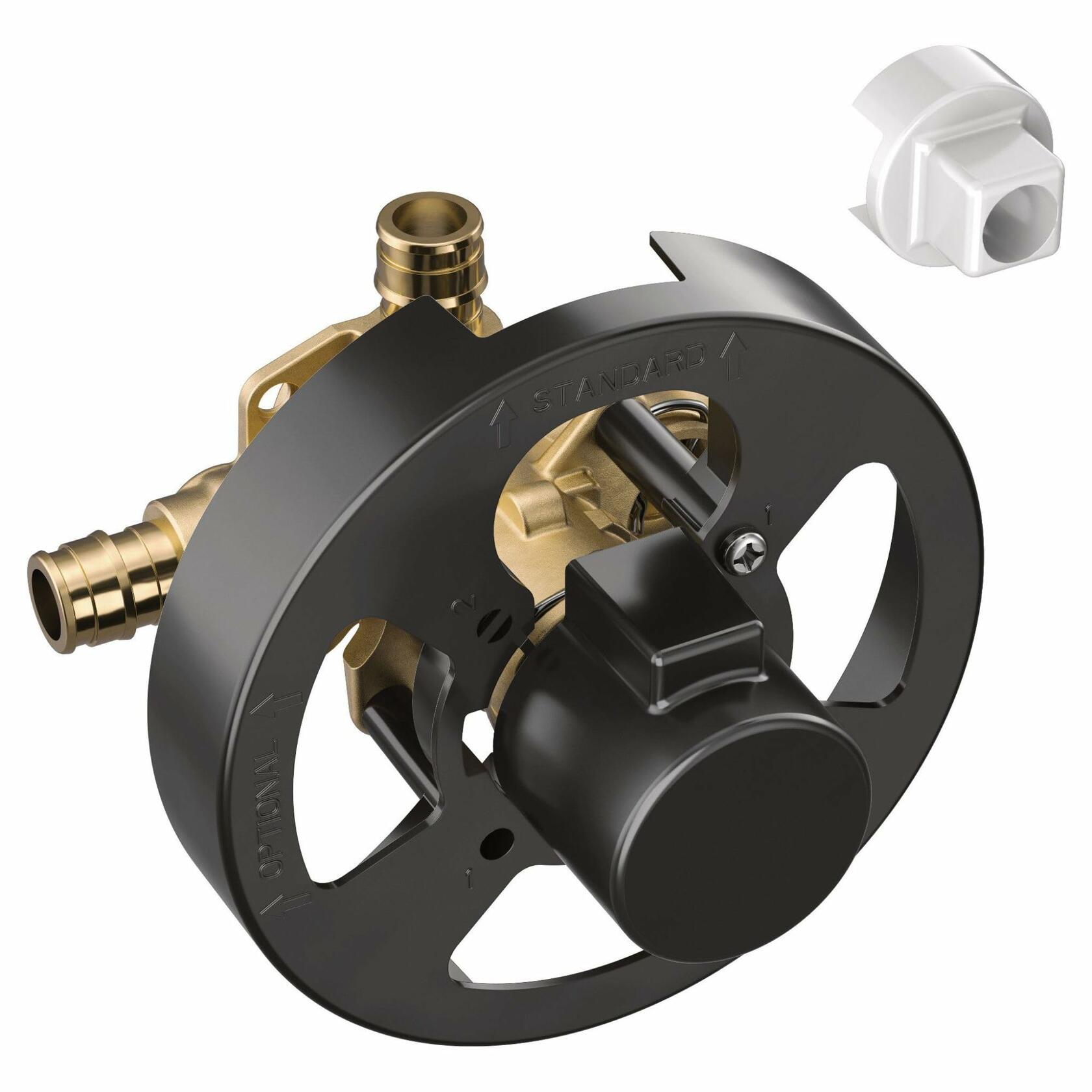

MOEN 2328PF M-PACT Posi-Temp 3-Port Rough-In Valve with Stops, 1/2" Cold Expansion PEX

The MOEN 2328PF M-PACT Posi-Temp rough-in valve provides pressure-balanced temperature control for compatible shower installations. Its three-port brass valve body uses 1/2-inch cold-expansion PEX connections and includes quarter-turn service stops, an adjustable temperature limit stop, and the MOEN 1222 cartridge.

Features & Details

• Posi-Temp pressure balancing: Helps maintain a consistent shower temperature when water pressure changes elsewhere in the home.
• Cold-expansion PEX connections: 1/2-inch ports support compatible expansion-style PEX plumbing systems.
• Three-port configuration: Designed for a shower-only installation without an active tub outlet.
• Quarter-turn service stops: Allow the valve’s water supply to be isolated during servicing.
• Temperature limit stop: Adjustable stop restricts maximum handle rotation and hot-water temperature range.
• M-PACT system: Accepts compatible Posi-Temp trim and allows future trim changes without replacing the in-wall valve.
• 1222 cartridge: Uses MOEN’s replaceable Posi-Temp pressure-balancing cartridge.

Specifications

• Brand: MOEN
• Model: 2328PF
• Valve system: M-PACT Posi-Temp
• Product type: Pressure-balancing rough-in valve
• Application: Shower only
• Ports: 3
• Connection size: 1/2 inch
• Connection type: Cold-expansion PEX
• Service stops: Quarter-turn stops included
• Temperature limit stop: Included and adjustable
• Cartridge: MOEN 1222
• Valve body material: Brass
• Trim: Sold separately
