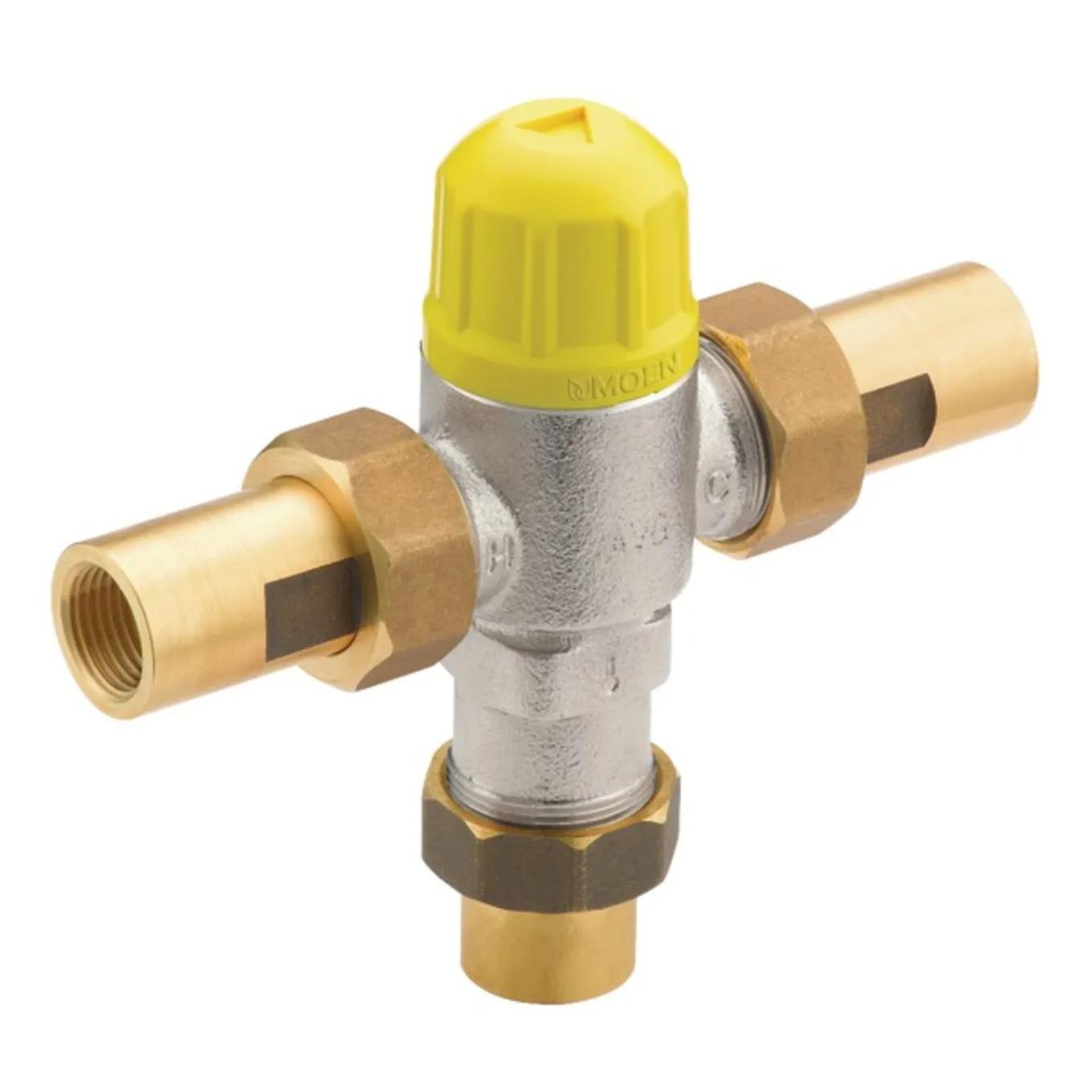

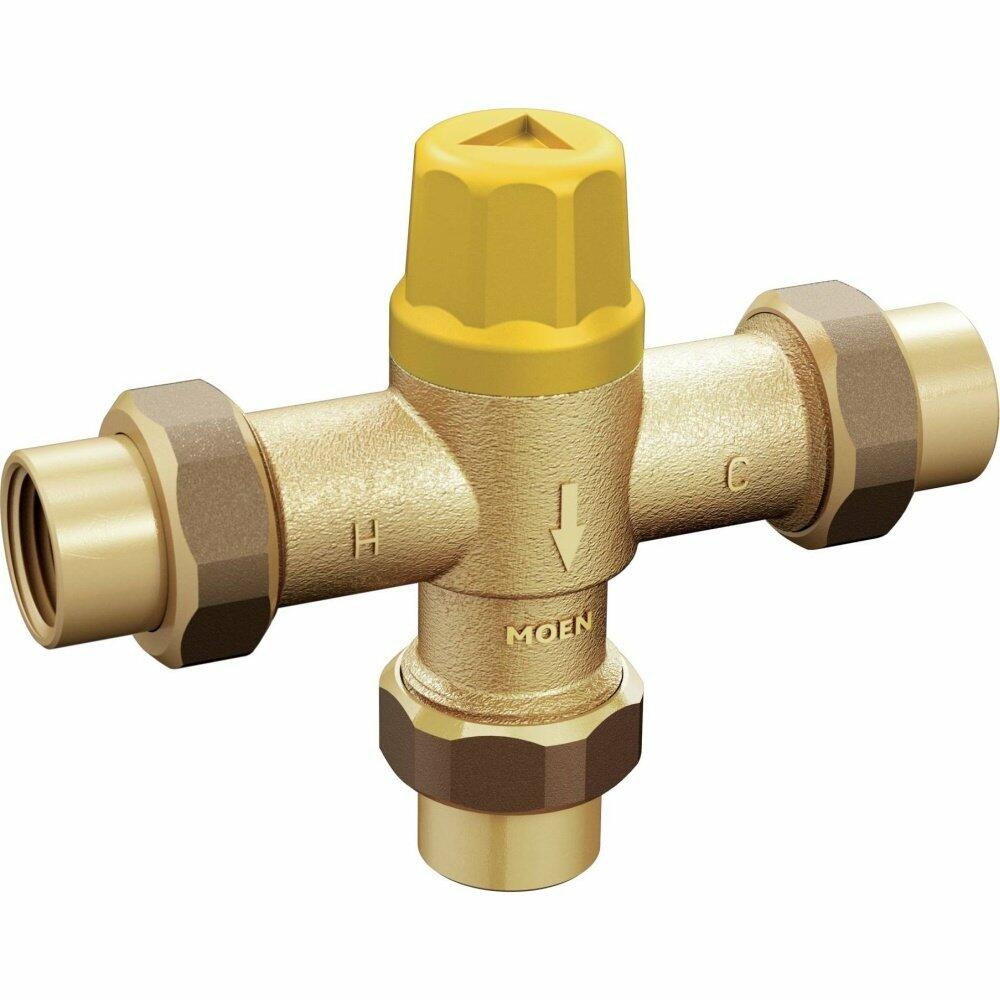

MOEN 104451 Three-Way Low-Flow Thermostatic Mixing Tee with 1/2" FIP and 3/8" Compression Connections

The MOEN 104451 Thermostatic Mixing Tee blends hot and cold water for compatible commercial faucet installations. Its three-way brass body supports either 1/2-inch FIP or 3/8-inch compression connections, while the low-flow configuration is designed for compatible low-consumption applications. A secure mounting assembly and required installation hardware are included.

Features & Details

• Thermostatic Mixing: Blends hot and cold supplies to deliver tempered water to a compatible outlet.
• Three-Way Configuration: Provides hot inlet, cold inlet, and mixed-water outlet connections.
• Dual Connection Options: Supports 1/2-inch FIP or 3/8-inch compression fittings.
• Low-Flow Design: Intended for compatible commercial low-consumption faucet applications.
• Brass Construction: Durable valve body supports dependable commercial use.
• Secure Mounting Assembly: Helps hold the mixing tee firmly in the installed position.
• Installation Hardware Included: Includes the hardware required for a compatible installation.

Specifications

• Brand: MOEN
• Model: 104451
• Product Type: Thermostatic Mixing Tee
• Number of Ways: Three
• Flow Configuration: Low Flow
• Flow Rate: 0.35 GPM
• Connection Option 1: 1/2-inch FIP/FNPT
• Connection Option 2: 3/8-inch Compression
• Overall Height: Approximately 3-19/20 inches
• Overall Width: 5-1/8 inches
• Overall Depth: 1-1/2 inches
• Material: Brass
• Mounting Assembly Included: Yes
• Installation Hardware Included: Yes
• Application: Commercial Tempered-Water Faucet Systems
